Here, I would like to introduce a basic operation of CV, transform. It is a very import part, which is Similarity Transform, Affine Transform and Perspective Transform.
Similarity Transform
Actually, similarity transform is rotation, translation and scale. So we need two point pairs. Features: regard (0,0) (default: left-top) as base, scale and rotate around (0,0), then translate to the new center. Importantly, the angle of two lines in the image is fixed and proportion is fixed, besides, the type of the line is fixed.

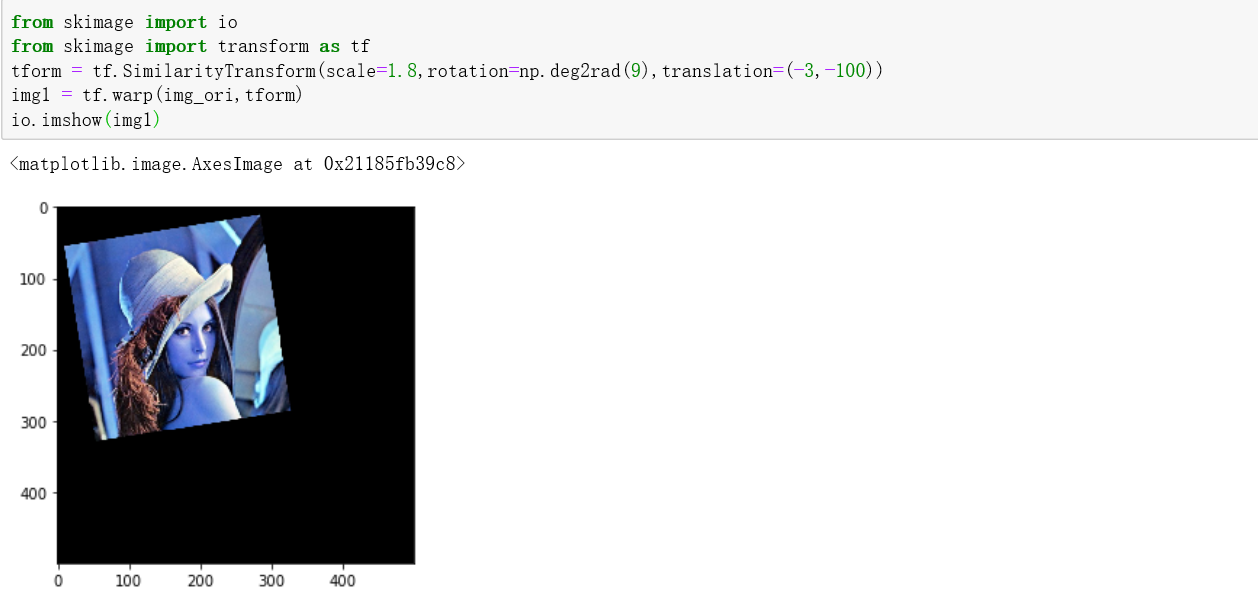

We need import a new lib if we wanna do it. It is called skimage and we need the function transform to use SimilarityTransform.
Affine Transform

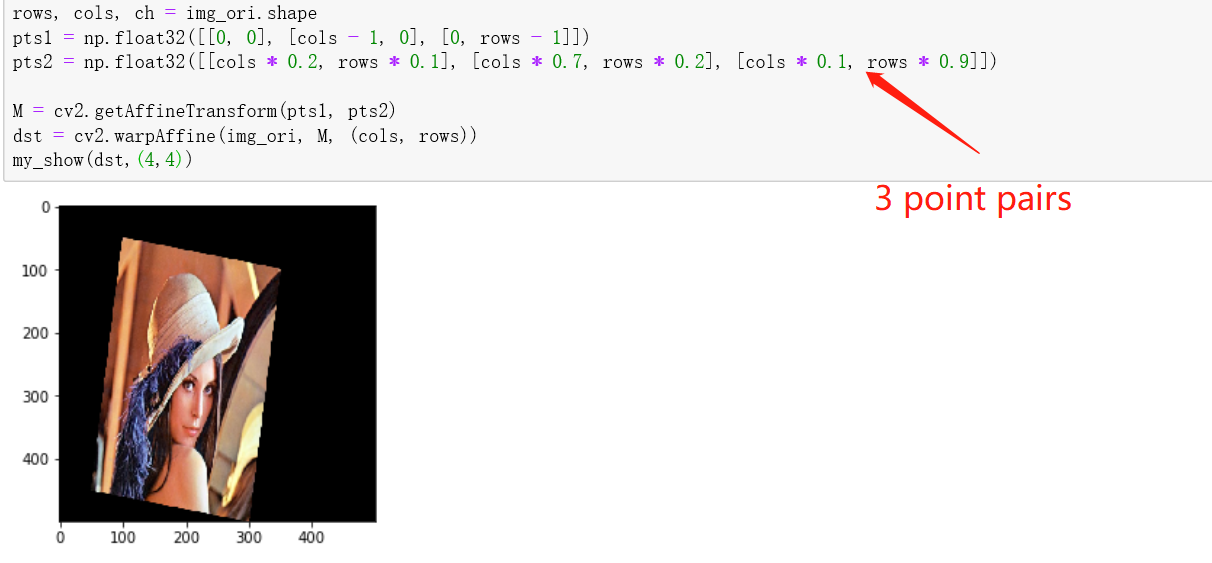

Same as Similarity transform, but the angle is not fixed and we need three point pairs(Non-Collinear).
Perspective Transform

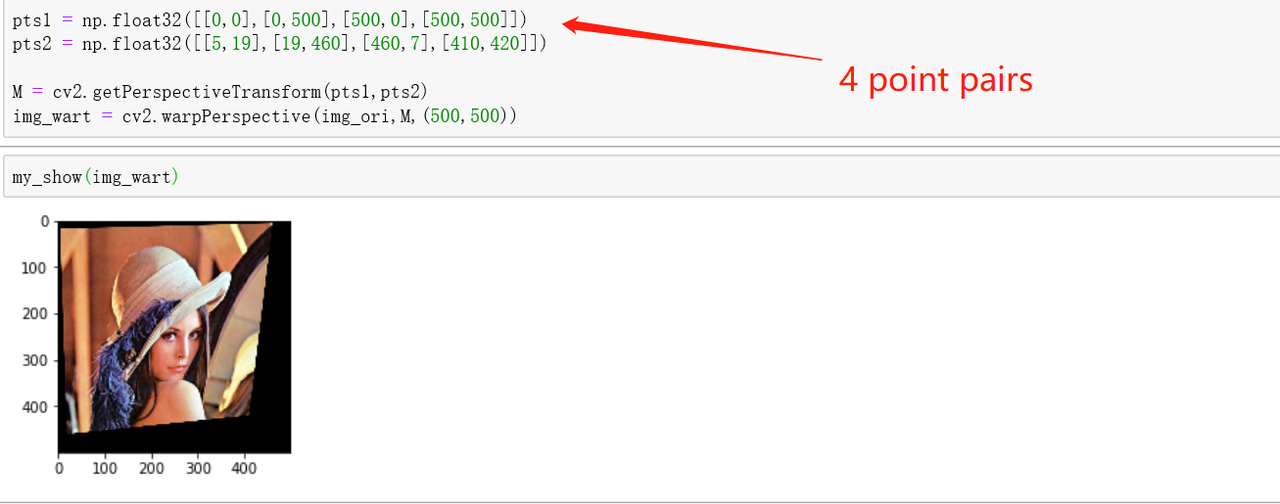

Same as Affine Transform, but only the type of line is fixed. We need 4 point pairs to determine it.
More
Besides, I will show you two more things that are image erode and image dilate.
Erode

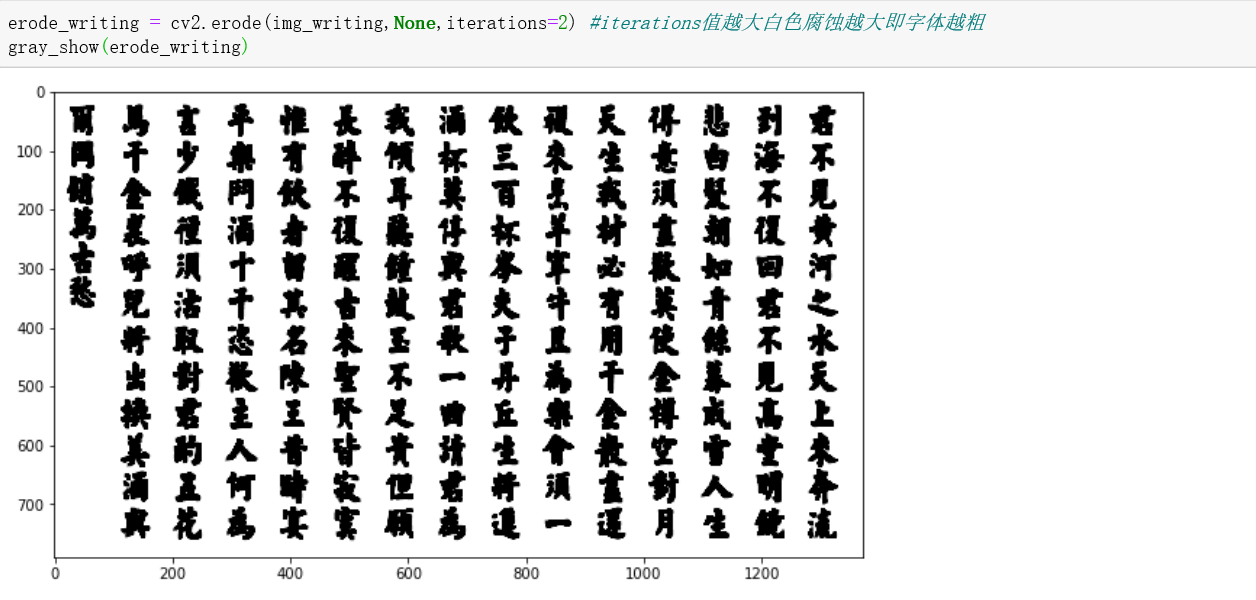

That is very easy, we have a function erode in cv2. And the bigger the value of iterations is, the thicker the font is.

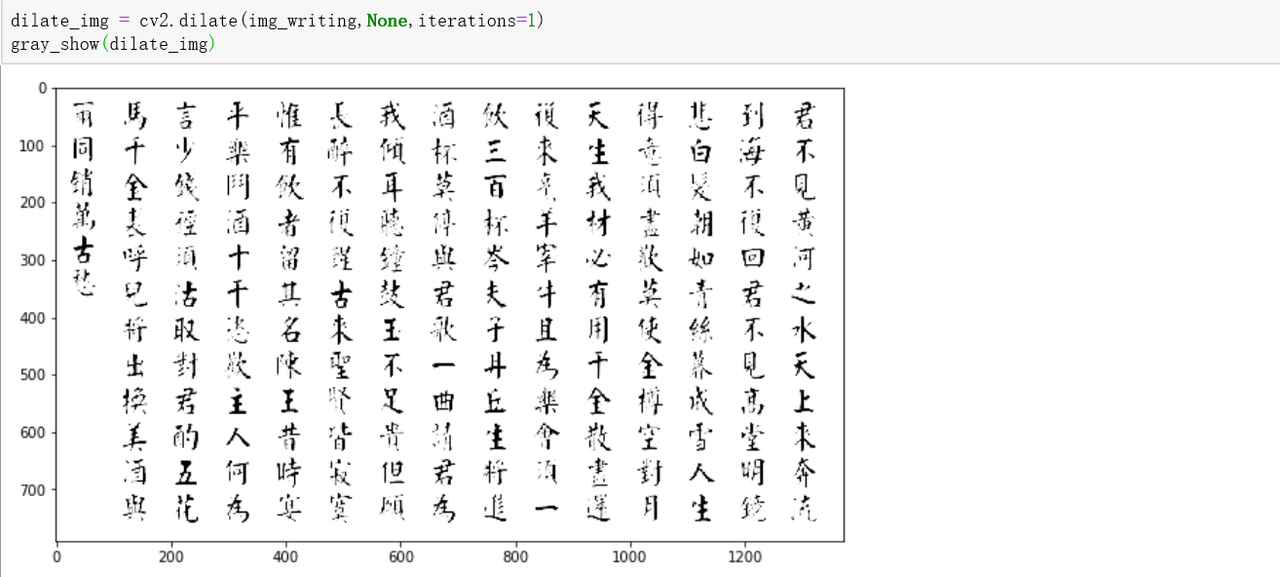

Dilate
Ending! And if you need, you can click this link to see all the code on my github.
